NanoLuc® Reporter Vector with NF-κB Response Element

View information on global supply logistics
customize-this-small

Vector that Expresses NanoLuc® Luciferase in the Presence of NF-κB

  • Responds to changes in NF-κB expression in cells
  • Includes an optimized NanoLuc® luciferase gene that codes for a reporter protein with a shorter half-life (NlucP)
  • Hygromycin resistance selectable marker means choosing transient transfection or generating a stable cell line

Size

Catalog number selected: N1111

$ 450.00
Your price:
Add to Cart
This product is discontinued
Add to Helix
This product is available under our Early Access program - Learn More
This product is available under our Catalog (FT) program - Learn More
NanoLuc® Reporter Vector with NF-κB Response Element
20μg
$ 450.00
Your price: Log in

The pNL3.2.NF-κB-RE[NlucP/NF-κB-RE/Hygro] Vector contains five copies of an NF-κB response element (NF-κB-RE) that drives transcription of a destabilized form of NanoLuc® luciferase, an engineered small (23.3kDa) luciferase fusion protein. The NlucP reporter consists of NanoLuc® luciferase with a C-terminal fusion to PEST, a protein destabilization domain, which responds more quickly and with greater magnitude to changes in transcriptional activity than unmodified NanoLuc® luciferase.

NanoLuc® (Nluc) luciferase is a small enzyme (19.1kDa) engineered for optimal performance as a luminescent reporter. The enzyme is about 100-fold brighter than either firefly (Photinus pyralis) or Renilla reniformis luciferase using a novel substrate, furimazine, to produce high intensity, glow-type luminescence. The luminescent reaction is ATP-independent and designed to suppress background luminescence for maximal assay sensitivity.

Applications

  • Transcription regulation.
  • Virus-cell interactions.
  • Compound screening.
  • GPCR signaling.
  • Cell signaling.

About the NanoLuc® Luciferase Reporter Enzyme

NanoLuc® luciferase in the form of NanoLuc®-PEST (NlucP) closely couples protein expression to changes in transcriptional activity and increased signal-to background ratios. The PEST sequence appended to Nluc destabilizes the reporter protein, make NanoLuc® luciferase more responsive to changes in the cell. Luminescence is linearly proportional to the amount of NanoLuc® protein over a 1,000,000-fold concentration range, with a signal half-life ≥2 hours when detected with Nano-Glo® Luciferase Assay Reagent.

NanoLuc® luciferase possesses a number of physical properties that make it an excellent reporter protein:

  • very small, monomeric enzyme (171 amino acids; 513bp)
  • high thermal stability (Tm = 60°C)
  • active over a broad pH range (pH 6–8)
  • no post-translational modifications or disulfide bonds
  • uniform distribution in cells
  • emission spectrum well suited for bioluminescence resonance energy transfer (BRET; λmax = 465nM).

NanoLuc® luciferase is made available in a variety of plasmids designed for use in reporter gene assays of transcriptional control and with each of the NanoLuc® forms (unfused Nluc, PEST destabilized NlucP, and secreted secNluc). The different pNL variations are designed for the following:

  • pNL1: cloning of a known or putative promoter region
  • pNL2: cloning of a known or putative promoter region and establishment of a stable cell line through Hygromycin selection
  • pNL3: cloning of a binding site or response element not in need of a basic promoter (such as are present in the pNL3.2.NF-κB-RE vector)
  • Control plasmids for the unfused, PEST-destabilized and secreted Nluc forms also are available.

The pNL vector series uses a pGL4-based backbone for easy sequence transfer from existing plasmids. This backbone design also reduces anomalous results by removing many transcription factor binding sites and other potential regulatory elements. The NlucP gene is codon optimized and has had many potential regulatory elements or other undesirable features removed (such as common restriction enzyme sites).

Sequence Information

pNL3.2.NF-κB-RE[NlucP/NF-κB-RE/Hygro] Vector GenBank® Accession Number JQ513377 and vector sequence text file.

Specifications

What's in the box?

Item Part # Size

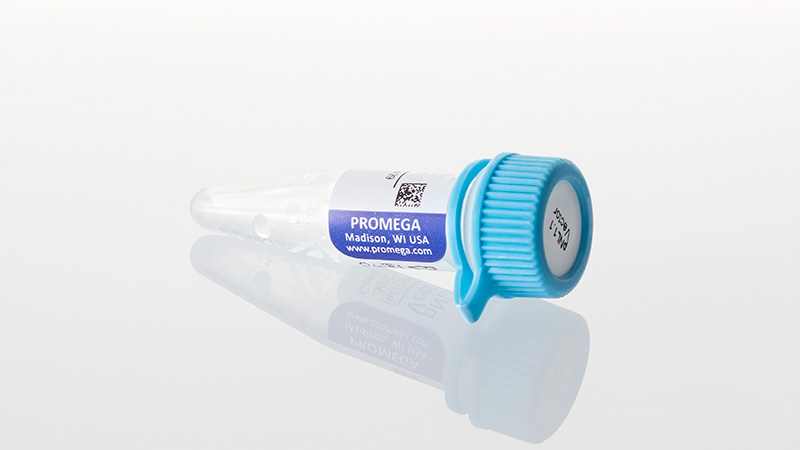

pNL3.2.NF-κB-RE[NlucP/NF-κB-RE/Hygro] Vector N111A 1 × 20μg

Certificate of Analysis

Search by lot number

Use Restrictions

For Research Use Only. Not for Use in Diagnostic Procedures.

Storage Conditions

BB

Patents and Disclaimers

BY USE OF THIS PRODUCT, RESEARCHER AGREES TO BE BOUND BY THE TERMS OF THIS LIMITED USE LABEL LICENSE. If researcher is not willing to accept the conditions of this limited use statement, and the product is unused, Promega will accept return of the unused product and provide researcher with a full refund.

Researchers may use this product for research use only; no transfer or commercial use of this product is allowed. Commercial use means any and all uses of this product or derivatives by a party in exchange for consideration, including, but not limited to (1) use in further product manufacture; (2) use in provision of services, information or data; and (3) resale of the product or its derivatives, whether or not such product or derivatives are resold for use in research. Researchers shall have no right to modify or otherwise create variations of the nucleotide sequence of the luciferase gene except that researcher may (1) create fused gene sequences provided that the coding sequence of the resulting luciferase gene has no more than four deoxynucleotides missing at the affected terminus compared to the intact luciferase gene sequence; and (2) insert and remove nucleic acid sequences in splicing research predicated on the inactivation or reconstitution of the luminescence of the encoded luciferase. No other use of this product or derivatives is authorized without the prior express written consent of Promega.

In addition, researchers must:
(1a) use Nano-Glo®-branded luminescent assay reagents (LARs) for all determinations of luminescence activity of this product and its derivatives; or
(1b) contact Promega to obtain a license for use of the product and its derivatives with LARs not manufactured by Promega.

For uses of Nano-Glo®-branded LARs intended for energy transfer (such as bioluminescence resonance energy transfer) to acceptors other than a genetically encoded autofluorescent protein, researchers must:
(2a) use NanoBRET®-branded energy acceptors (e.g., BRET-optimized HaloTag® ligands) for all determinations of energy transfer activity by this product and its derivatives; or
(2b) contact Promega to obtain a license for use of the product and its derivatives for energy transfer assays to energy acceptors not manufactured by Promega.

Researchers may transfer derivatives to others for research use provided that at the time of transfer a copy of this label license is given to the recipients and recipients agree to be bound by the terms of this label license. With respect to any uses outside this label license, including any diagnostic, therapeutic, prophylactic or commercial uses, please contact Promega for supply and licensing information. PROMEGA MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING FOR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WITH REGARD TO THE PRODUCT. The terms of this agreement shall be governed under the laws of the State of Wisconsin, USA.

U.S. Pat. Nos. 8,557,970, 8,669,103, 9,777,311, 9,840,730, 9,951,373, 10,233,485, 10,633,690, 10,774,364, 10,844,422, 11,365,436, 11,661,623, 11,667,950; European Pat. Nos. 2456864, 2635595, 2990478, 3181687, 3409764; Japanese Pat. Nos. 6038649, 6155424, 6227615, 6374420, 6539689; and other patents and patents pending.
